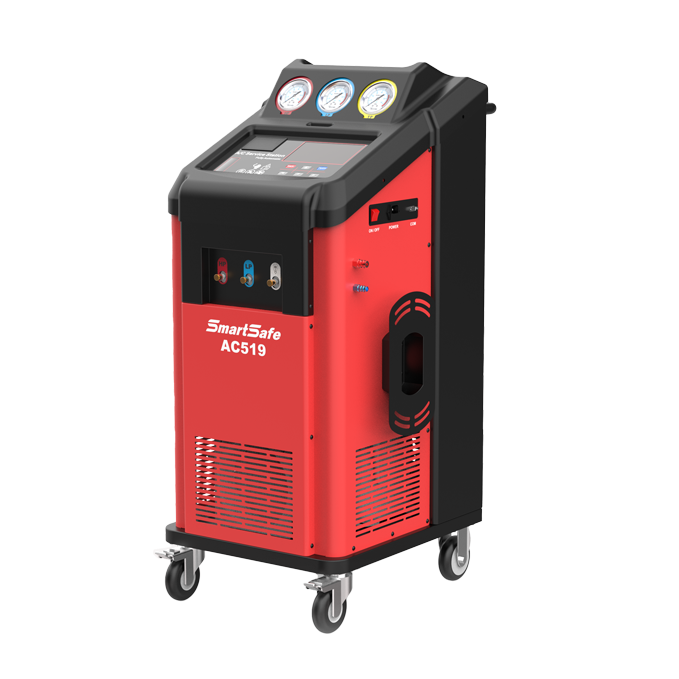

SmartSafe AC519 A/C Service Station

AC519 is a fully automatic intelligent automobile air conditioning maintenance equipment that integrates functions such as disassembly-free cleaning, refrigerant recovery, filling, and vacuuming. It can effectively improve the problems of poor air conditioning cooling effect, large compressor load, high noise, and high fuel consumption.

  1. Equipped with automobile refrigeranr model database, no manual setting is required
  2. Supports two refrigerants: R134A or R1234YF
  3. Forward, reverse and pulse cleaning functions and the cleaning effect is obvious good
  4. The automatic mode can complete operations such as cleaning, recycling, vacuuming, filling refrigeration oil, and refrigerant with one click. Each function can also be executed independently
  5. Built-in printer supports printing materials, working hours and other information
Functions Description √
Air-conditioning pipeline cleaning Clean the air-conditioning pipelines, remove sludge, powder and other impurities inside the pipelines, replace the refrigeration oil more thoroughly, improve compressor lubrication, and improve the refrigeration performance of the air-conditioning system. √
Refrigerant recovery The refrigerant in the automobile air conditioning system is purified and regenerated and then recycled into the working tank to meet the standards for reuse. √
Vacuuming Achieve vacuuming of air conditioning pipelines and equipment pipelines. √
Refrigeration oil filling Supports manual/automatic filling, and realizes intelligent and precise filling through the built-in electronic scale. √
Refrigerant filling Add refrigerant to the vehicle according to the set filling amount. √
Automatic mode According to the set parameters, automatically perform cleaning, recovery, vacuuming, filling of refrigeration oil, and lnject refrigerant and other operations. √
Database Equipped with automobile refrigerant model database, supports database calling, no manual setting is required. √
Print Supports printing of device execution results. √
