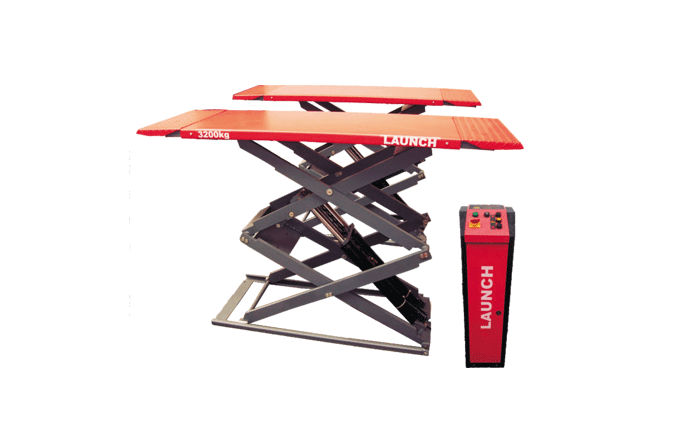

Scissor Lift

TLT632AF

TLT623AF

The 3200KG load capacity ultra-thin small scissor lift TLT630AF initial height less than 110mm. Its bilateral hydraulic synchronizing system ensures high synchronization performance, and all moving points adopt automatic lubricating oil-free bearing for ensuring long lifespan.

As the first priority, safety has been considered from design to manufacture. TLT630AF is equipped with hydraulic interlocking, anti-explosion and travel limit safety device. It is CE certificated.

  • Ultra-tin 3.2t small scissor vehicle lift.
  • The platform is extendable.
  • Ultra-thin structure design is applicable for on-ground arrangement ,technical cooperation with Italy ,four hydraulic cylinders design ,convenient for demounting tyres and repairing chassis.
  • Hydraulic interlocking and Anti-explosion safety device makes it stable and reliable operation.
  • Bilateral hydraulic synchronizing system ensures high synchronization performance.
  • Travel limit safety device ,protects machine from being damaged.
  • All moving points adopt automatic lubricating oil-free bearing for ensuring long lifespan.
  • Oil hose anti-explosion device.
  • CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to 400mm high from ground.
  • CE certificated
  • One-key leveling, easy and simple(for upgraded version)
